Wednesday 14 October 2015

radarchart - 'fmsb' package


radarchart() in 'fmsb' package offer a plotting function that draws radar/spider chart, similar to stars() in base package.


library(fmsb)

'zoo' package converts date values to year-month values.

library(zoo)

dat<-as.data.frame(sunspot.month)

dat$TS<-seq(as.yearmon("1749-01-01"), as.yearmon("2013-09-01"), by = 1/12)
colnames(dat)[1] <- "sunspot"


The decades and centuries were derived from the year-month field to be used for grouping variables as below.

dat$decade <- floor(as.numeric(format(dat$TS, "%Y"))/10)*10
dat$century <- floor(as.numeric(format(dat$TS, "%Y"))/100)*100
dat$month <- format(dat$TS, "%b")
dat$month <- factor(dat$month, levels = unique(dat$month))


I used 'reshape2' package to rearrange the data to the desired structure while doing the aggregation to obtain mean values.

library(reshape2)

agg <- recast(data = dat,century~month, measure.var = "sunspot", mean)


radarchart() requires the input data to have the max value and min value in the first and second rows respectively.

MX <- c(NA, rep(max(agg[,-1]), ncol(agg)-1))
MN <- c(NA, rep(min(agg[,-1]), ncol(agg)-1))

agg <- rbind(MX, MN, agg)


To draw a radar chart:

radarchart(agg[,-1])



























To assign colours for different groups and to insert a legend:


COL<-colorRampPalette(c("red", "blue"))(nrow(agg)-2)

radarchart(agg[,-1], pcol = COL)
legend(2, 1, legend = levels(as.factor(agg$century)), title = "century", col = COL, seg.len = 2, border = "transparent", pch = 16, lty = 1)




To change the line colour in the background:


radarchart(agg[,-1], pcol = COL, cglcol = "grey80")
legend(2, 1, legend = levels(as.factor(agg$century)), title = "century", col = COL, seg.len = 2, border = "transparent", pch = 16, lty = 1)
























To modify number of layers in the background (in this example from 5 to 10):

radarchart(agg[,-1], pcol = COL, cglcol = "grey80", seg = 10)
legend(2, 1, legend = levels(as.factor(agg$century)), title = "century", col = COL, seg.len = 2, border = "transparent", pch = 16, lty = 1)























To add a title:

radarchart(agg[,-1], pcol = COL, cglcol = "grey80", seg = 10, title = "sun spots")
legend(2, 1, legend = levels(as.factor(agg$century)), title = "century", col = COL, seg.len = 2, border = "transparent", pch = 16, lty = 1)























To split the groups in to individual radar chart:


par(mfrow = c(2, 2))
for(i in 3:nrow(agg)){
radarchart(agg[c(1,2,i), -1], pcol = COL[i-2], cglcol = "grey80", seg = 10, title = paste("Century:", agg$century[i], sep=" "))
}









































To colour the regions/polygons of the above graphs:


par(mfrow=c(2, 2))
for(i in 3:nrow(agg)){
radarchart(agg[c(1, 2, i), -1], pcol = COL[i-2], cglcol = "grey80", seg = 10, title = paste("Century:", agg$century[i], sep=" "), pdensity = 20, pangle = 30, pfcol = COL[i-2])
}




















































3D Graph - Lattice Package



cloud() function in 'lattice' package provides 3-dimensional visualisation option

library(lattice)

cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species)



























Adding a title

cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="Iris Species")

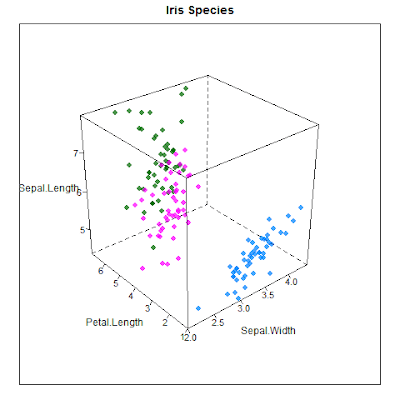

Modify axis

cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="Iris Species",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5),y=list(cex=0.9,tck=0.5),z=list(cex=0.9,tck=0.5)))



























Modify frame style

cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="Iris Species",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1")))


























Modify axis labels

cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="Iris Species",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)))





























Modify plotting style

cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="Iris Species",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"))




























Insert legend/key

cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="Iris Species",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),key=list(space="right",title="Species",cex.title=1,points=list(col=c("tan","goldenrod","brown"),cex=0.9,pch=16),text=list(lab=levels(iris$Species),cex=0.9)))





























Rotating the graph (displayed using 'gridExtra' package for better comparison):

library(gridExtra)

- around x-axis
#default g1<-cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="x = -60 (default)",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),screen=list(z=40,x=-60,y=0))

#x rotates graph around x axis - i.e. moves viewing  angle up and down - e.g. for view from top (x=0) g2<-cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="x = 0",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),screen=list(z=40,x=0,y=0))

g3<-cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="x = -30",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),screen=list(z=40,x=-30,y=0))


grid.arrange(g1,g3,g2,nrow=1,main="Rotating Around X-Axis")































- around z-axis

#z rotates graph around z axis - i.e. moves viewing  angle left and right - e.g. for view from front (z=0)
g1<-cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="z = 40 (default)",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),screen=list(z=40,x=-60,y=0))

g2<-cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="z = 20",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),screen=list(z=20,x=-60,y=0))

g3<-cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="z = 0",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),screen=list(z=0,x=-60,y=0))

grid.arrange(g1,g2,g3,nrow=1,main="Rotating Around Z-Axis")

























- around y-axis

#y rotates graph around y axis - i.e. moves viewing  angle up and down but hinges on y-axisg1<-cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="y = 0 (default)",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),screen=list(z=40,x=0,y=0))

g2<-cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="y = 30",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),screen=list(z=40,x=0,y=30))

g3<-cloud(Sepal.Length~Sepal.Width*Petal.Length,iris,pch=16,alpha=0.7,cex=1,groups=iris$Species,main="y = 60",scales=list(arrows=FALSE,x=list(cex=0.9,tck=0.5,col="wheat3"),y=list(cex=0.9,tck=0.5,col="wheat3"),z=list(cex=0.9,tck=0.5,col="wheat3")),par.settings=list(box.3d=list(col="wheat1"),par.xlab.text=list(cex=0.8,col="tan3"),par.ylab.text=list(cex=0.8,col="tan3"),par.zlab.text=list(cex=0.8,col="tan3",rot=90)),col=c("tan","goldenrod","brown"),screen=list(z=40,x=0,y=60))

grid.arrange(g1,g2,g3,nrow=1,main="Rotating Around Y-Axis")




























For 3D-bar/column chart:


library(latticeExtra)

Dat <- aggregate(Sepal.Length~Species+Petal.Length, iris, mean)

cloud(Sepal.Length ~ Species + Petal.Length, Dat, panel.3d.cloud = panel.3dbars,
               col.facet=colorRampPalette(c("dodgerblue", "salmon"))(nrow(Dat)),
                xbase = 0.4, ybase = 0.4, scales = list(arrows = FALSE, col = 1),
                col = "white", par.settings = list(axis.line = list(col = "transparent"))
        )
